Cables / Rods

820
Wire Rope

Material AISI 316
7 X 7 construction

904
Wire Rope End Cap

Rubber end
cap for rope.

830
Wire Rope

Material AISI 316
7 X 19 construction

IS

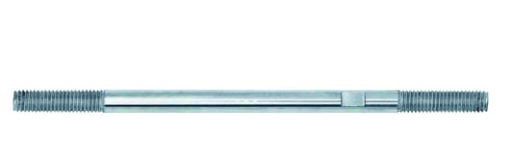

Stainless Steel Rod

Stainless steel rod available in 6mm, 8mm, 10mm, 12mm or 16mm.

810
Stranded Wire

Material AISI 316
1 X 19 strand

610
Stranded Wire

Material AISI 316
1 X 37 | 1 X 61 strand

IK Assemblies

IK100

Rope with both sides
external thread ends swaged.

IK130

Rope with both sides turnbuckle with external thread F30 hammered.

IK180

Rope with both sides
external thread F30 and swageless
on countersunk end stop.

IK305

Rope with both sides CS-fork with internal thread swaged.

IK345

Rope with both sides external thread F30 complete with CS-fork with internal thread.

IK420

Rope with both sides
turnbuckle with eye swaged.

IKZ607

Rope with both sides
with fork fitting rolled.

IK110

Rope with both sides turnbuckle
with external thread swaged.

IK150

Rope with one side external thread swaged, other side radius head end stop swaged.

IK190

Rope with both sides external thread F30 and swageless on ball head.

IK310

Rope with one side turnbuckle with fork and other side with fork swaged.

IK400

Rope with both sides
eye with internal thread swaged.

IKZ600

Rope with both sides
external thread rolled.

IK120 / IK121

Rope with both sides
external thread F30 hammered.

IK160

Rope with one side external thread swaged, other side countersunk head end stop swaged.

IK200 / IK201

Rope with both sides
internal thread swaged.

IK320

Rope with both sides
turnbuckle with fork swaged.

IK405

Rope with both sides CS-eye with internal thread swaged.

IKZ604

Rope with both sides
turnbuckle with fork fitting.

IK125 / IK126

Rope with both sides
external thread F50 hammered.

IK170

Rope with both sides external thread F30 and swageless on radius end stop.

IK300

Rope with both sides fork with internal thread swaged.

IK340

Rope with both sides external thread F30 complete with fork with internal thread.

IK410

Rope with one side turnbuckle with eye and other side eye swaged.

IKZ605

Rope with one side turnbuckle with fork and other side swaged fork.

External Threads

950/951
External Thread F50 Hammer Swaged

Swaged external thread
F50 hammered for 4mm to 8mm rope.
Thread length = 30mm or 60mm.

826/827
External Thread
Swageless Connection

Field installed external thread end fitting for wire rope up to 12mm.

824
Turnbuckle F50 Hammered

For runs over 50'. Available for
5mm, 6mm or 8mm rope.

110
Turnbuckle With
Thread Hammered

Turnbuckle with thread hammered
for 4mm to 10mm rope.

948/949
External Thread F30 Hammer Swaged

Swaged external thread
F30 hammered for 3mm to 10mm rope. Thread length varies.

856
External Thread
Swivel Swaged

Swaged external swivel thread
end for 3mm to 6mm rope.

825
Swageless Turnbuckle

Swageless turnbuckle
for 4mm to 12mm rope.

110
Turnbuckle With
Thread Swaged

Turnbuckle with thread swaged
for 2mm to 16mm rope.

850/855
External Thread Swaged

Swaged external thread
end for rope up to 16mm.
Thread length varies.

829
Turnbuckle Threads
Swaged

Turnbuckle with two swaged external thread ends for rope up to 12mm.

825
Short Swageless Turnbuckle

Short swageless turnbuckle
6mm to 12mm rope.

650/655
External Thread Roll Swaged

Roll swaged external thread
end for rope up to 26mm.
Thread length varies.

828
Turnbuckle Threads
F30 Hammered

Turnbuckle with two F30 hammered
swaged external thread ends.

130
Turnbuckle Cylindrical with Thread F30 Hammered

For runs over 50'. Available for
4mm to 6mm rope.

Internal Threads

860/861
Internal Thread Swaged

Swaged internal thread end fitting
for 6mm to 30mm rope.

857
Internal Thread Swivel Swaged

Swaged internal thread swivel for 3mm to 6mm rope.

831/832
Internal Thread Swageless

Field installed internal thread end fitting for 2mm to 12mm rope.

760
Easy Grip With Internal Thread

Swaged end fitting with internal thread for 2mm to 6mm rope.

Forks

871/872 Fork with External Thread

871/872
Fork With External Thread

Fork with RH or LH external thread.

817/818
Fork With Internal Thread

With RH or LH internal thread.

306/307
CS-Fork With
Internal Thread Swaged

For 4mm to 8mm rope.

346/345
CS-Fork With
External Thread Hammered

For 4mm to 8mm rope.

8712_Turnbuckle With Two Forks

8712
Turnbuckle With Two Forks

Turnbuckle with two forks.

881-Swaged-Fork-Carl-Stahl

881
Swaged Fork

For 2mm to 16mm rope.

870-Turnbuckle-With-Fork-Swaged-Carl-Stahl

870
Turnbuckle
With Swaged Fork

For 2mm to 16mm rope.

670
Turnbuckle With Fork Fitting

For 6mm to 26mm rope.

945-946_CS-Fork With External Thread_Carl Stahl

945/946
CS-Fork With External Thread

With RH or LH external thread.

947-CS-Fork-Swaged-Carl-Stahl

947
Swaged CS-Fork

For 4mm to 6mm rope.

870-Turnbuckle-With-Fork-Hammered-Carl-Stahl

870
Turnbuckle With Fork Hammered

For 4mm to 10mm rope.

812-811-Fork-With-Internal-Thread-Swaged-Carl-Stahl

812/811
Fork With
Internal Thread Swaged

For 3mm to 16mm rope.

917/918 CS-Fork-With-Internal-Thread-Carl-Stahl

917/918
CS-Fork With Internal Thread

With RH or LH internal thread.

681
Fork Roll Swaged

For 6mm to 26mm rope.

870-Turnbuckle-With-Fork-Swageless-Carl-Stahl

870
Turnbuckle With Fork Swageless

For 4mm to 8mm rope.

Eyes

887
Eye Counterpiece

With 48mm long M8 thread.

806/807
Eye With Internal Thread

Eye with RH or LH internal thread.

880
Swaged Eye

Swaged eye for 2mm to 16mm rope.

814/813
Eye With Internal Thread Swaged

RH or LH for 3mm to 16mm rope.

885/886
Eye With External Thread

With RH or LH external thread.

885/886
Eye With External Thread Bent

With RH or LH external thread.

889
Turnbuckle With Eye Swaged

For 2mm to 12mm rope.

889
Turnbuckle With Eye Swaged

For 2mm to 12mm rope.

985/986
CS-Eye With External Thread

With RH or LH external thread. Compatible with CS-Fork.

888
Eye Bolt

RH or LH eye bolt.

889
Turnbuckle With Eye Hammered

For 4mm to 10mm rope.

906/907
CS-Eye With Internal Thread

With RH or LH internal thread. Compatible with CS-Fork.

980
CS-Eye Swaged

For 4mm to 6mm rope.

816/815
CS-Eye With Internal Thread Swaged

RH or LH for 4mm to 8mm rope.

End Stops

868
Ball Head
With Internal Thread

Ball head with internal thread
M4, M5 or M6.

865
Swaged End Stop

Swaged end stop
for 2mm to 8mm rope.

866
End Stop Countersunk 90°
Round Swaged

End stop countersunk 90°
round swaged for 2mm to 8mm rope.

190
Ball Head With Hammered External Thread

Ball head with hammered external thread for 3mm to 5mm rope.

868
Pivot Head For Ball Head
For Flat Profile

Pivot head for ball head
for flat profile.

869
Swaged End Stop
With Radius Head

Swaged end stop with radius head
for 2mm to 8mm rope.

866
Swaged End Stop
Countersunk 90°

Swaged end stop countersunk 90°
for 2mm to 8mm rope.

868
Pivot Head For Ball Head
For Round Profile

Pivot head for ball head
for round profile.

869
Swaged End Stop
With Radius Head Round

Swaged end stop with radius head
round for 2mm to 8mm rope.

170
Radius Head With External
Thread Hammered

Radius head with hammered external thread for 4mm to 6mm rope.

869
Radius Head End Stop
With Internal Thread

Radius head end stop
with RH internal thread.

866
Countersunk Stop
With Internal Thread

Countersunk stop with internal
thread M4, M5, M6 or M8.

180
Countersunk Head With Hammered External Thread

Countersunk head with hammered external thread for 4mm to 6mm rope.

Loops and Clamps

803
Loop Swaged WithoutThimble

Swaged loop for rope
2mm to 16mm.

874
Loop Clamp Ring With Thimble

Loop clamp ring with thimble
for rope up to 8mm.

858
Cross Clamp 90°

90° non-adjustable cross clamp
for 3mm to 6mm wire rope.

873
Two Part Clamp Ring

Two part clamp ring for
3mm to 8mm rope.

921
Rod/Rope Holder

Stainless steel holder
for rod or rope.

804
Loop Swaged With Thimble

Swaged loop with thimble
for rope 2mm to 16mm.

874
Light Clamp Ring With Thimble

Light clamp ring with thimble
for rope up to 4mm.

858
Cross Clamp With Connection

Cross clamp for
3mm to 6mm rope.

921
Rope Guiding, Fork Head

Rope guide with fork head for
8mm to 12mm rope.

858
Screw On Cross Clamp

Screw on cross clamp for
6mm to 16mm rope.

800
Wire Rope Grip

Grip, heavy TYP for rope
2mm to 16mm.

858
Adjustable Cross Clamp

Adjustable cross clamp
for 3mm to 6mm wire rope.

858
CS-Cross Clamp, Adjustable

Adjustable cross clamp for
4mm to 12mm rope.

921
Rope Pulley Block

Pulley block for 6mm
or 8mm rope.

858
Adjustable Screw On Cross Clamp

Adjustable screw on
cross clamp.

5970
Thimble

Thimble for wire rope
2mm to 16mm.

858
Adjustable Cross Clamp with Internal Thread

Adjustable cross clamp with
internal thread for 3mm to 6mm rope.

863
Light Clamp Ring

Light clamp ring for
2mm to 10mm rope.

863
Light Clamp Ring With Adapter

Light clamp ring with adapter for 2mm to 8mm rope.

862
Angle Stand Off Washer

Angle stand off
washer.

Accessories

862
Angle Standoff Washer For
External Thread, Flat Profile

Angle standoff washer with flat profile for external thread M4 to M16.

864
Loose Sleeve

Loose sleeve for 3mm to 10mm rope.

835
Shackle D-Form

Shackle D-Form.

836
Cover Disc With Internal Thread

With RH or LH internal thread.

878
Dual Thread Screw

With RH or LH thread M5 to M12.

892
Lock Nut With Nylon Insert

Lock nut with nylon insert. Available with M4 to M20 thread.

904
Wire Rope End Cap

For 2mm to 10mm rope.

803
Rampa Screw For Wood

Blue galvanized steel Rampa
screw for wood.

862
Angle Standoff Washer For
External Thread, Round Profile

Angle standoff washer with round profile for external thread M4 to M16.

876
Thread Sleeve

Thread sleeve available for M6 to M16.

835
Bow Shackle

Bow Shackle.

896
Washer

Washer for M4 to M36.

843
Hexagon Head Screw

Available with M6 to M14 thread.

875
Turnbuckle, Cylindrical Left/Right

Left/right cylindrical turnbuckle. Available with M5 to M8 thread.

882
Threaded Rod

With RH or LH thread.

803
Wall Anchor Z-IG A4

Available with M6 to M12
internal thread.

862
Angle Washer For Countersunk End Stop 90°, Flat Profile

Angle washer for countersunk end stop 90°, flat profile.

899
Ball For Internal Thread
Radius Head

Ball for internal thread radius head.

838
Eye Nut

Available with thread M6 to M24.

844
Socket Head Screw

Socket head screw M4 to M12.

892
Hexagon Nut

With LH or RH thread M4 to M36.

875
Turnbuckle Left/Right

Left/right turnbuckle available with M5 to M24 thread.

884
Headless Screw RH/LH

Available with M4 to M20 thread.

862
Angle Washer For Countersunk End Stop 90°, Round Profile

Angle washer for countersunk end stop 90°, round profile.

898
Ball End With Internal Thread

Ball end with RH or LH internal thread M4 to M10.

837
Eye Bolt

Available with thread M6 to M24.

890
Pan Head Screw

Pan head screw M5 to M8.

894
Dome Nut

Dome nut with M4 to M20 thread.

834
Fork Bracket

Fork Bracket.

803
Wall Anchor

Wall anchor with M6 to M12 thread.

Go To I-SYS Product Information Page

contact
